attemptId: Option[ApplicationAttemptId] = NoneYarnSchedulerBackend — Coarse-Grained Scheduler Backend for YARN
YarnSchedulerBackend is an abstract CoarseGrainedSchedulerBackend for YARN that contains common logic for the client and cluster YARN scheduler backends, i.e. YarnClientSchedulerBackend and YarnClusterSchedulerBackend respectively.
YarnSchedulerBackend is available in the RPC Environment as YarnScheduler RPC Endpoint (or yarnSchedulerEndpointRef internally).
YarnSchedulerBackend expects TaskSchedulerImpl and SparkContext to initialize itself.
It works for a single Spark application (as appId of type ApplicationId)
|
Caution
|
FIXME It may be a note for scheduler backends in general. |
attemptId Internal Attribute
attemptId is the application attempt ID for this run of a Spark application. It is only available for cluster deploy mode.
It is explicitly set to None when YarnClientSchedulerBackend starts (and bindToYarn is called).
It is set to the current attempt id (using YARN API’s ApplicationMaster.getAttemptId) when YarnClusterSchedulerBackend starts (and bindToYarn is called).
|
Note
|
attemptId is exposed using applicationAttemptId which is a part of SchedulerBackend Contract.
|
applicationAttemptId
|
Note
|
applicationAttemptId is a part of SchedulerBackend Contract.
|
applicationAttemptId(): Option[String]applicationAttemptId returns the application attempt id of a Spark application.
Resetting YarnSchedulerBackend
|
Note
|
reset is a part of CoarseGrainedSchedulerBackend Contract.
|
reset resets the parent CoarseGrainedSchedulerBackend scheduler backend and ExecutorAllocationManager (accessible by SparkContext.executorAllocationManager).
doRequestTotalExecutors
def doRequestTotalExecutors(requestedTotal: Int): Boolean|
Note
|
doRequestTotalExecutors is a part of the CoarseGrainedSchedulerBackend Contract.
|

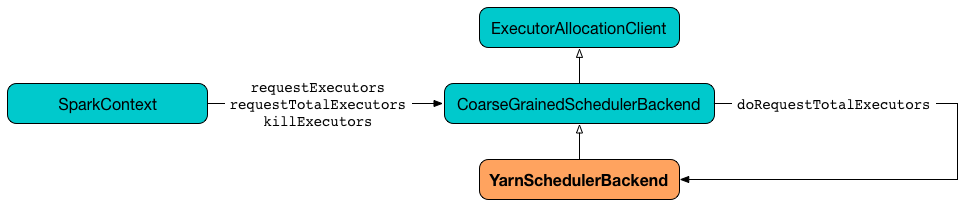

Figure 1. Requesting Total Executors in YarnSchedulerBackend (doRequestTotalExecutors method)
doRequestTotalExecutors simply sends a blocking RequestExecutors message to YarnScheduler RPC Endpoint with the input requestedTotal and the internal localityAwareTasks and hostToLocalTaskCount attributes.
|
Caution
|
FIXME The internal attributes are already set. When and how? |
Reference to YarnScheduler RPC Endpoint (yarnSchedulerEndpointRef attribute)
yarnSchedulerEndpointRef is the reference to YarnScheduler RPC Endpoint.
totalExpectedExecutors
totalExpectedExecutors is a value that is 0 initially when a YarnSchedulerBackend instance is created but later changes when Spark on YARN starts (in client mode or cluster mode).
|
Note
|
After Spark on YARN is started, totalExpectedExecutors is initialized to a proper value.
|
It is used in sufficientResourcesRegistered.
|
Caution
|
FIXME Where is this used? |
Creating YarnSchedulerBackend Instance
When created, YarnSchedulerBackend sets the internal minRegisteredRatio which is 0.8 when spark.scheduler.minRegisteredResourcesRatio is not set or the parent’s minRegisteredRatio.
totalExpectedExecutors is set to 0.
It creates a YarnSchedulerEndpoint (as yarnSchedulerEndpoint) and registers it as YarnScheduler with the RPC Environment.
It sets the internal askTimeout Spark timeout for RPC ask operations using the SparkContext constructor parameter.
It sets optional appId (of type ApplicationId), attemptId (for cluster mode only and of type ApplicationAttemptId).
It also creates SchedulerExtensionServices object (as services).
|
Caution
|
FIXME What is SchedulerExtensionServices?
|
The internal shouldResetOnAmRegister flag is turned off.
sufficientResourcesRegistered
sufficientResourcesRegistered checks whether totalRegisteredExecutors is greater than or equals to totalExpectedExecutors multiplied by minRegisteredRatio.
|
Note
|
It overrides the parent’s CoarseGrainedSchedulerBackend.sufficientResourcesRegistered. |
|
Caution
|
FIXME Where’s this used? |
minRegisteredRatio
minRegisteredRatio is set when YarnSchedulerBackend is created.
It is used in sufficientResourcesRegistered.
Starting the Backend (start method)
start creates a SchedulerExtensionServiceBinding object (using SparkContext, appId, and attemptId) and starts it (using SchedulerExtensionServices.start(binding)).
|
Note
|
A SchedulerExtensionServices object is created when YarnSchedulerBackend is initialized and available as services.
|
Ultimately, it calls the parent’s CoarseGrainedSchedulerBackend.start.
|
Note
|
|
Stopping the Backend (stop method)
stop calls the parent’s CoarseGrainedSchedulerBackend.requestTotalExecutors (using (0, 0, Map.empty) parameters).
|
Caution
|
FIXME Explain what 0, 0, Map.empty means after the method’s described for the parent.
|
It calls the parent’s CoarseGrainedSchedulerBackend.stop.
Ultimately, it stops the internal SchedulerExtensionServiceBinding object (using services.stop()).
|
Caution
|
FIXME Link the description of services.stop() here.
|
Recording Application and Attempt Ids (bindToYarn method)
bindToYarn(appId: ApplicationId, attemptId: Option[ApplicationAttemptId]): UnitbindToYarn sets the internal appId and attemptId to the value of the input parameters, appId and attemptId, respectively.
|
Note
|
start requires appId.
|
Internal Registries
shouldResetOnAmRegister flag
When YarnSchedulerBackend is created, shouldResetOnAmRegister is disabled (i.e. false).
shouldResetOnAmRegister controls whether to reset YarnSchedulerBackend when another RegisterClusterManager RPC message arrives.
It allows resetting internal state after the initial ApplicationManager failed and a new one was registered.
|
Note
|
It can only happen in client deploy mode. |
